Brand:SIEMENS

Model:6AV3503-1DB10

Display Size:3″

Display Type:LC Display

Backlight:LED Backlit

Characters Per Line:20 Characters

Operating Systems Compatibility:SIMATIC S5, 505, S7, M7

Communication Interface:PROFIBUS DP

Communication Speed:12 Mbaud

UL/CSA Approval:Yes

Net Weight (kg):0.503 Kg

Packaging Dimensions:15.40 x 18.70 x 5.60 cm

Material:Aluminum Alloy

Power Supply Voltage:12V DC

Power Consumption:≤ 0.8W

Operating Temperature:-20°C to +60°C

Storage Temperature:-30°C to +70°C

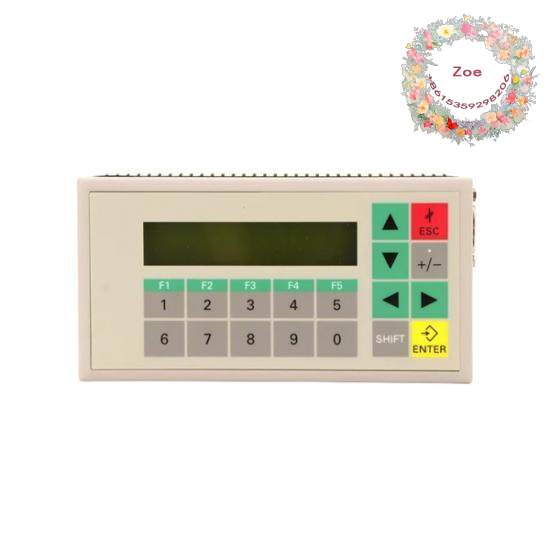

    The SIEMENS 6AV3503-1DB10 Operator Panel is designed for industrial environments, offering an optimal balance between performance and usability. Its 3″ LC display, LED backlit, and 4-tier configuration provide clear, easy-to-read information at a glance.

    Integrating seamlessly with SIMATIC S5, 505, S7, and M7 systems, this operator panel supports advanced monitoring and control functions without compromising on user-friendliness. The inclusion of PROFIBUS DP 12 Mbaud ensures robust communication within industrial networks.

    With UL/CSA approval, the 6AV3503-1DB10 is compliant with international safety standards, ensuring reliability and peace of mind for users in diverse industries. The compact yet sturdy design is made from high-grade plastic and metal, providing durability and longevity.

    For those seeking a compact yet powerful solution to manage and monitor industrial processes, the SIEMENS 6AV3503-1DB10 Operator Panel is an ideal choice. It simplifies complex operations, allowing technicians and engineers to focus on more strategic tasks.

    This operator panel comes equipped with open-source software provided free of charge, enabling customization and integration with WinCC Flexible 2004 Micro HSP upwards. This feature-rich platform empowers users to tailor their control systems according to specific needs, enhancing operational efficiency.
