Brand European and American spare parts Wind speed 108m/s excitation controller
Weight 34.5Ib Power 240VDC frequency 825Hz
Channel dual channel power capacity 1020W available for sale Beijing: Tianjin: Hebei; Shanxi; Inner Mongolia: Liao
Type Heavy industry application module model PFTL101B5.0KN

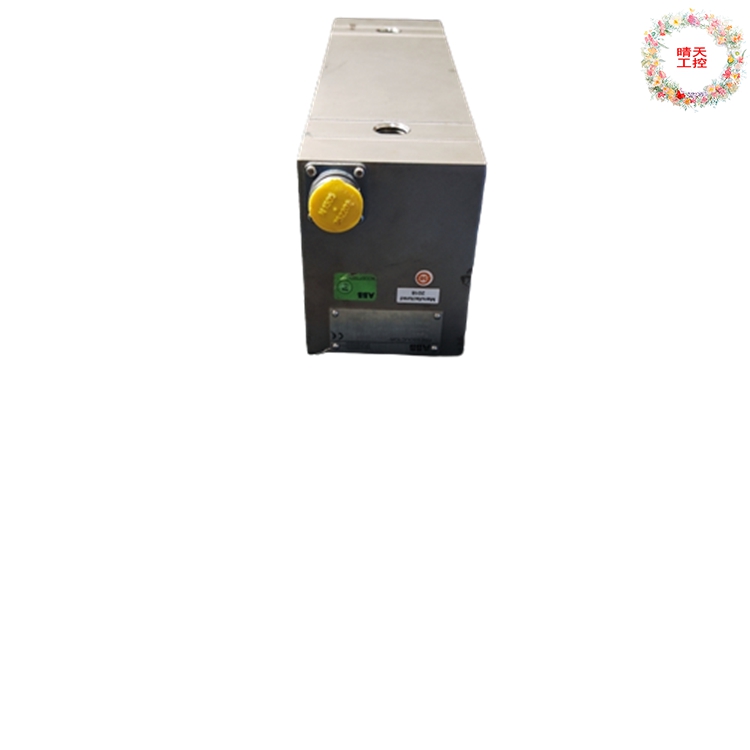

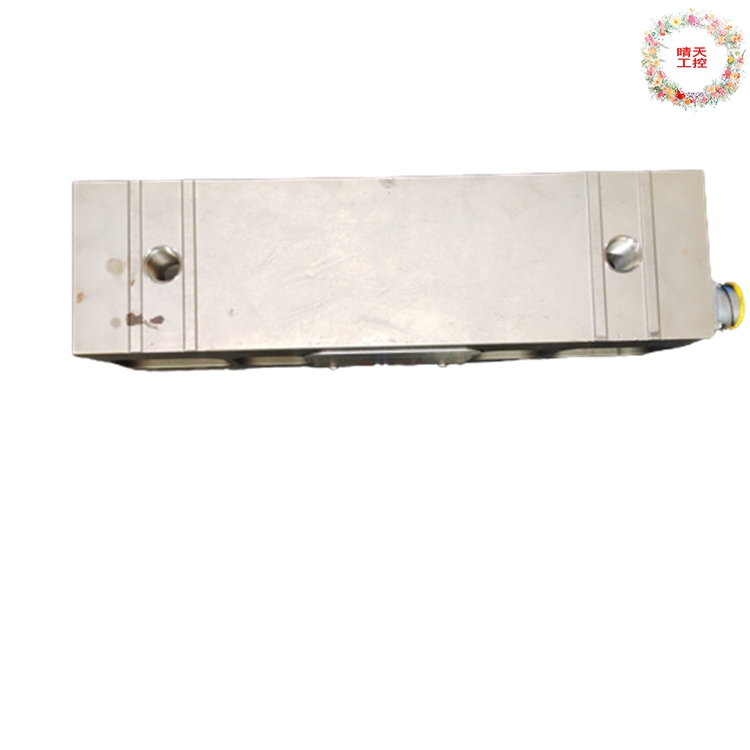

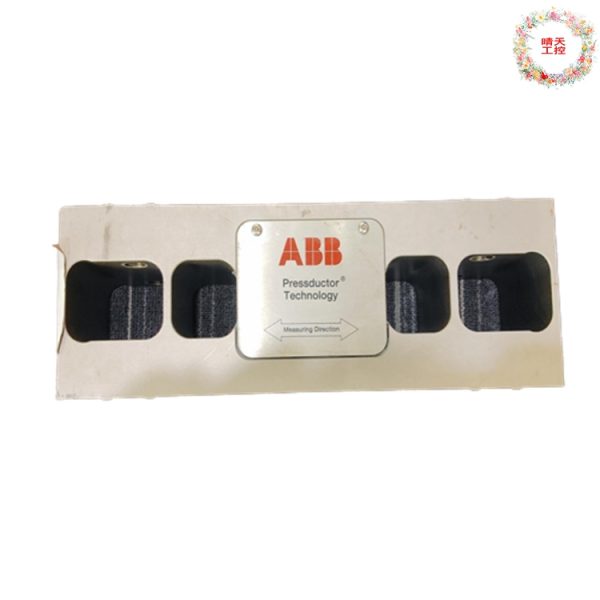

PFTL101B 5.0KN 3BSE004191R1 ABB tension weighing sensor

1. Model: PFEA111
Description: Conventional control unit, can connect 2 indenters, according to the different application environment, there are IP20 and IP65 protection levels, PLC interface signal is 0-10V DC, various calibration and range parameters can be set on site.
2. Model: PFCL201C
Description: Pillow block tensiometer vertical load measuring element, connected with cylindrical plug; Measuring force range: 5~50KN;
3. Model: PFCL201CD/CE
Description: Pillow block tensiometer vertical load measuring element, using cable sealing joint/fixed cable connection with protective hose, force measuring range: 5~50KN;
4. Model: PFTL101A
Description: Pillow block tensiometer horizontal load cell, cylindrical plug connection, force measuring range: 0.2~2KN.
5. Model: PFTL101AE
Description: Pillow block tension meter horizontal load measuring element, fixed cable connection, force measuring range: 0.2~2KN.
6. Model: PFTL101AER
Description: Acid resistant pillow block tension meter horizontal load cell, fixed cable connection, measuring force range: 0.2~2KN. Used for wet end tension measurement of paper making, protection grade up to IP66/67
7, Model: PFTL101B Swiss ABB original authentic PFTL101B
Description: Pillow block tension meter horizontal load cell, cylindrical plug connection, force measuring range: 2~20KN.
8. Model: PFTL101BE
Description: Pillow block tension meter horizontal load cell, fixed cable connection, force measuring range: 2~20KN.
9. Model: PFTL101BER
Description: Acid-resistant pillow block tension meter horizontal load cell, fixed cable connection, force range: 2~20KN. Used for wet end tension measurement of paper making, protection grade up to IP66/67
10. Model: PFTL201C
Description: Pillow block tensiometer horizontal load cell, cylindrical plug connection, force measuring range: 10~50KN.
11. Model: PFCL301E
Description: Mini web tension vertical load measuring element, measuring range :0.2~1KN
12. Model: PFTL301E
Description: Mini web tension horizontal load cell, measuring range :0.1~1KN
13. Model: PFRL101D
Description: Radial load cell, rated load 5.0KN.
14. Model: PFRL101C
Description: Radial load cell, rated load 0.5~2.0KN.
15. Model: PFRL101B
Description: Radial load cell, rated load 1.0KN.
16. Model: PFRL101A
Description: Radial load cell, rated load 0.5KN.
17. Model: PFEA113
Description: Tension controller with four load cells, Profibus-DP fieldbus communication, six configurable analog output ports.
18. Model: PFEA112
