The MVME6100 series is the first VMEbus board designed with the TundraTsi148 VMEbus interface chip, providing dual marginal Source Synchronous transmission (2eSST)VMEbus performance. In most cases, the 2eSST protocol enables the VMEbus to operate at the actual bandwidth of 320MMB/S.

Provide balanced performance from the processor, memory subsystem, local bus, and /O subsystem.

The MPC7457 PowerPC processor runs at up to 1.267 GHZ

The 128-bit AltiVec coprocessor for parallel processing is the ideal choice for data-intensive applications

2eSST VMEbus protocol, the transmission rate across VMEbus is 320MB/S

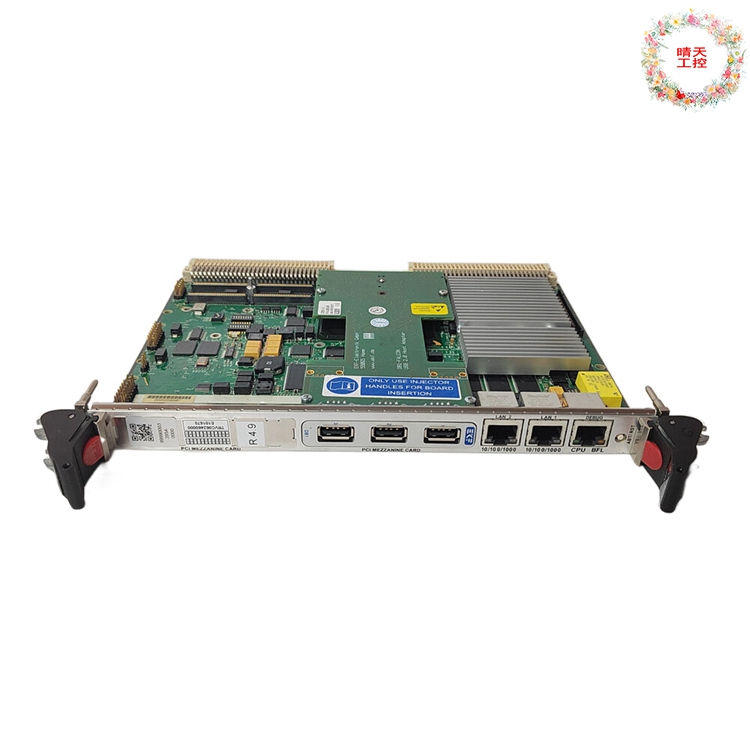

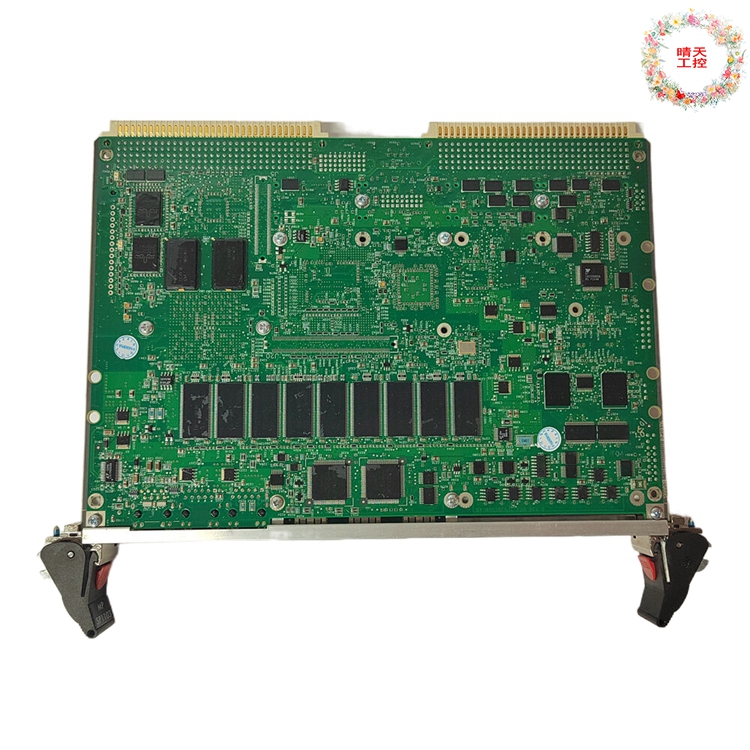

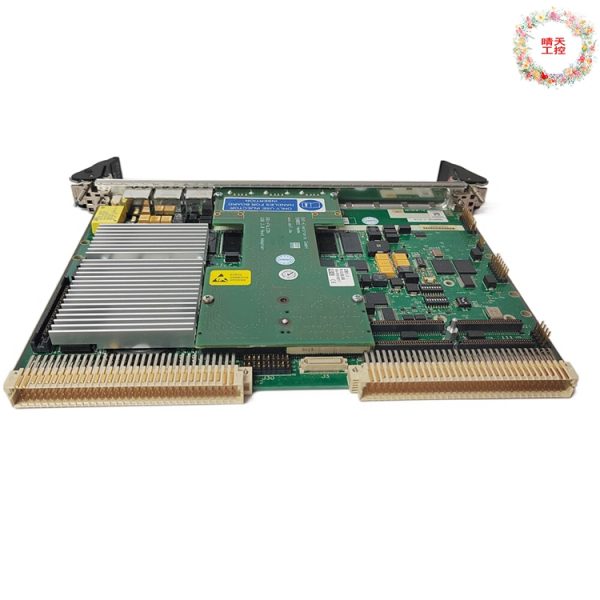

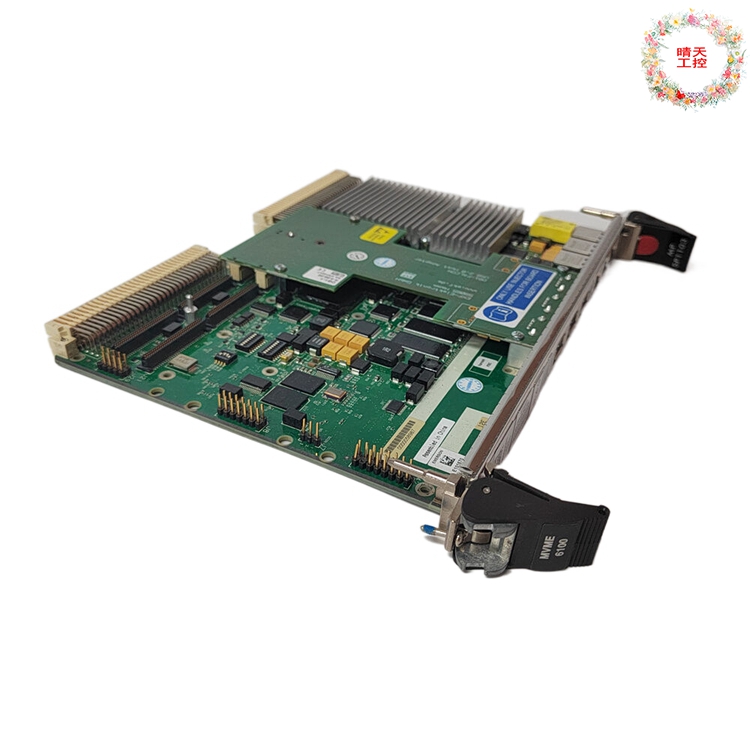

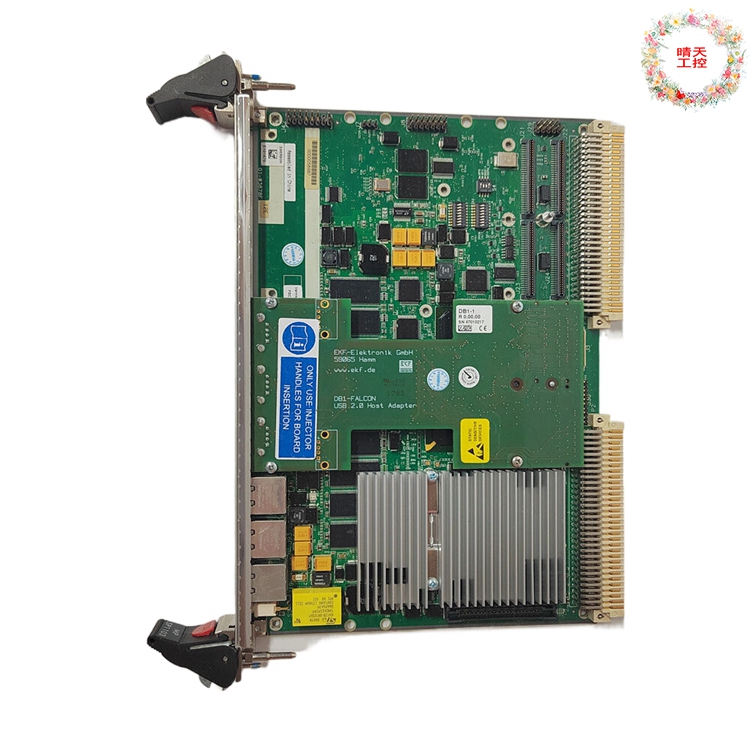

The MVME6100 is a single-slot single-board computer based on the MPC7457 processor, MV64360 system controller, Tsi148 VME Bridge ASIC, DDR DRAM with up to 1gb ecc protection, flash memory with up to 128MB and dual Gigabit Ethernet interfaces. The front panel connectors on the MVME6100 board include: two Gigabit Ethernet RJ-45 connectors, an asynchronous serial port RJ-45 connector with integrated BRDFAIL and CPU operation indicator Ied, and a combined reset and abort switch.
