IC698CRE030 Power module GE
Brand ABB Color Standard Application Industrial height 125mm rated current 530mA
Protection level IP45 ADAPTS to motor power 106KW Application Site Power Industry BOM Number GJR2391500R1220 Power industry HIEE401782R0001 Part Number IC698CRE030
Applicable pipe 2 Whether imported is weighing 4.28 kg can be sold nationwide
IC698CRE030 Power module GE

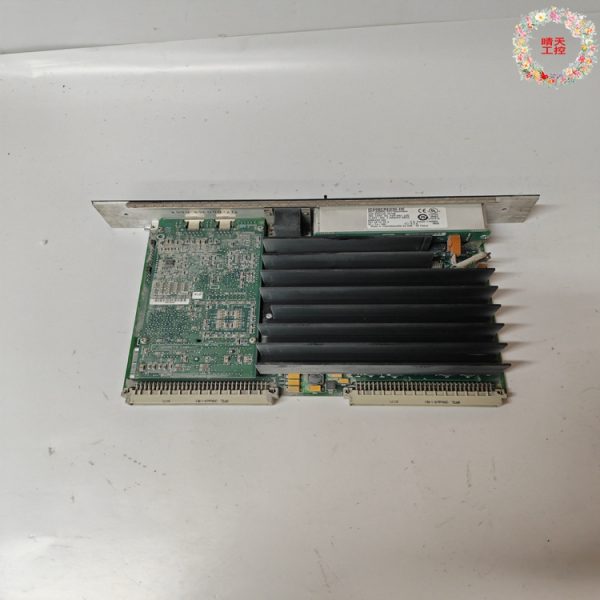

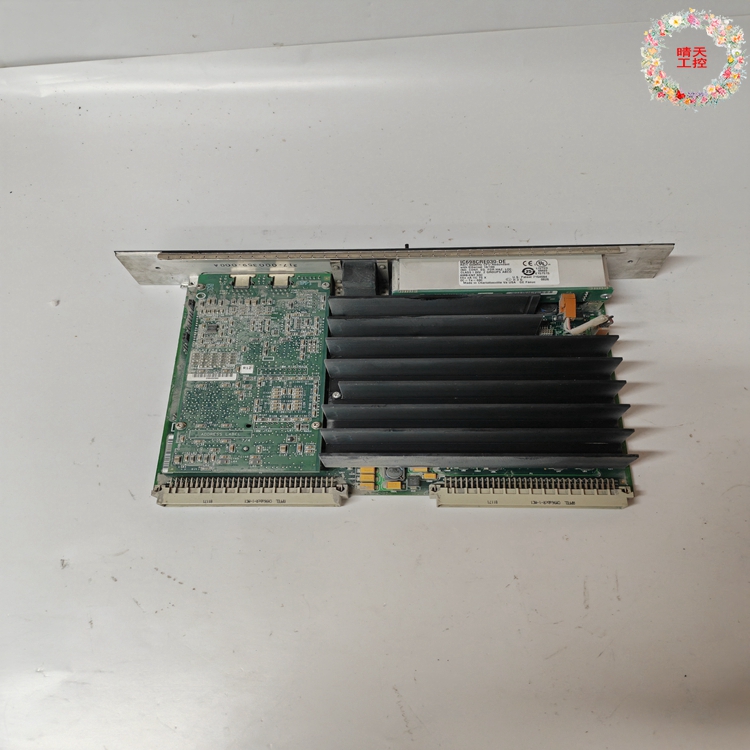

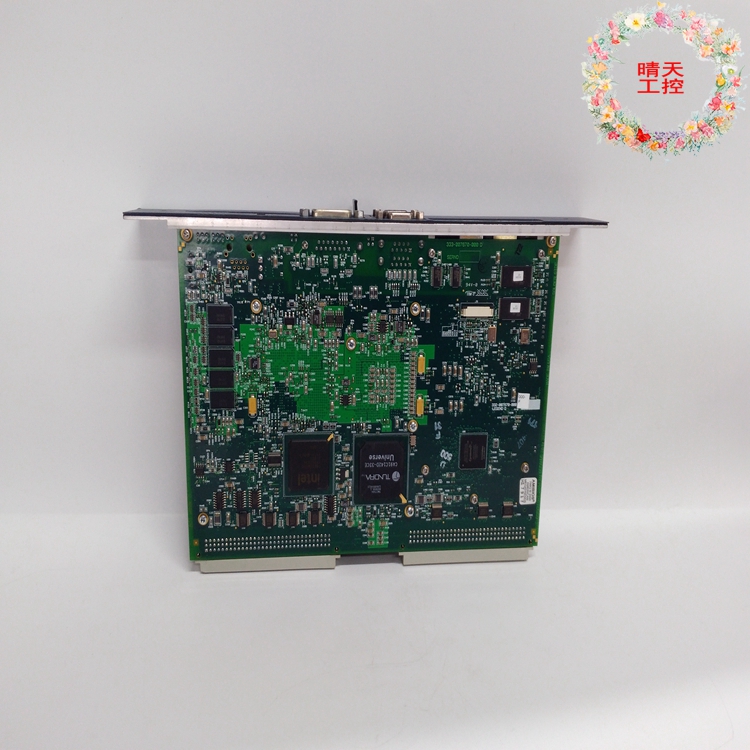

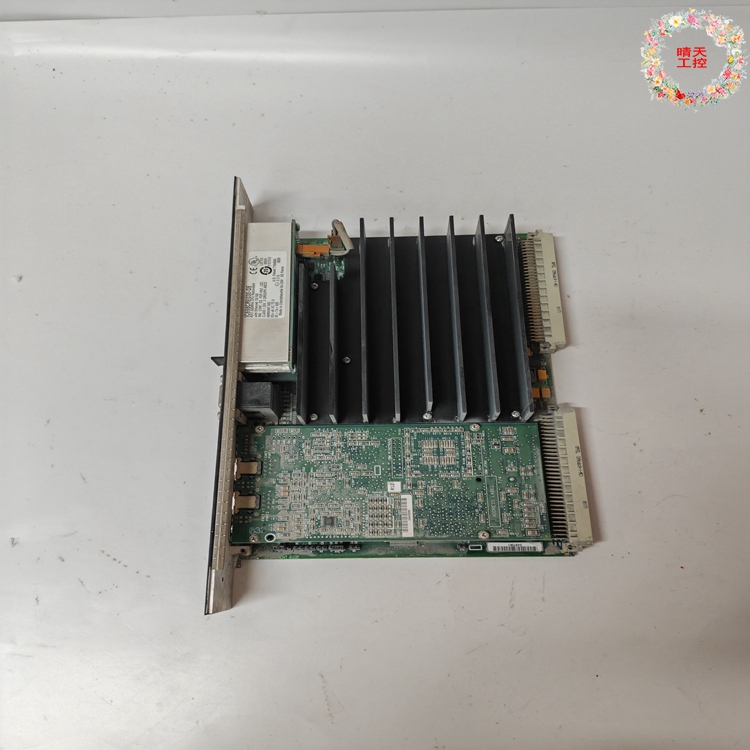

The IC698CRE030 is a PACSystems RX7i CPU. The RX7i CPU is programmed and configured with programming software to control machines, processes, and systems in real time. It is capable of communicating with I/O and smart option modules through a rack-mounted backplane using the VME64 standard format. An embedded Ethernet port or serial port enables the CPU to communicate with the programmer and HMI devices. This particular model uses a 600MHz Pentium-M microprocessor (64 MB of user memory and flash memory).
Highlights of the unit include HSB or hot standby redundancy, battery-supported user memory, and non-volatile flash memory, allowing program, configuration, register data, and symbol variable storage. It is a mass memory that can be accessed through the reference table %W. It features ladder diagram, C language, structured text and functional block diagram programming. Automatically locate symbol variables conveniently using unlimited memory. Many modules are supported, including the 90-70 series discrete and analog I/O and VME modules. For a list of other supported modules, see Installing Modules.
This IC698CRE030CPU allows cross-network data monitoring and up to 16 web server /FTP connections. The block size cannot exceed 128KB, but 512 blocks are supported. In addition, the unit comes with a word reference, a battery-powered calendar clock, a serial port that supports firmware upgrades, and three isolated serial ports.
Embedded Ethernet interfaces enable EGD data exchange, TCP/IP communication services, site management, diagnostic tools, and time synchronization with time servers. In addition, redundant IP(which can be configured by the user) facilitates the production of EGD switches.
The power requirements of the IC698CRE030 are as follows :+5 VDC: 3.2 amp nominal value, +12 VDC: 0.003 amp nominal value, and -12 VDC: 0.003 amp nominal value.
