Model Number:SR469-P5-HI-A20-E

Brand:General Electric

Category:Motor Management Relay

Control Power Range:90 to 300 VDC or 70 to 265 VAC

Frequency Range:48-62 Hz

Phase Current Inputs:5A

Analog Outputs:4 (0 to 1 mA)

Digital Inputs:9 opto-isolated inputs

Display:Enhanced display, larger LCD

Operating Temperature:-40°C to +60°C

Storage Temperature:-40°C to +80°C

Enclosure Rating:20-X

Overvoltage Category:II

Insulation Voltage:300 V

Pollution Degree:2

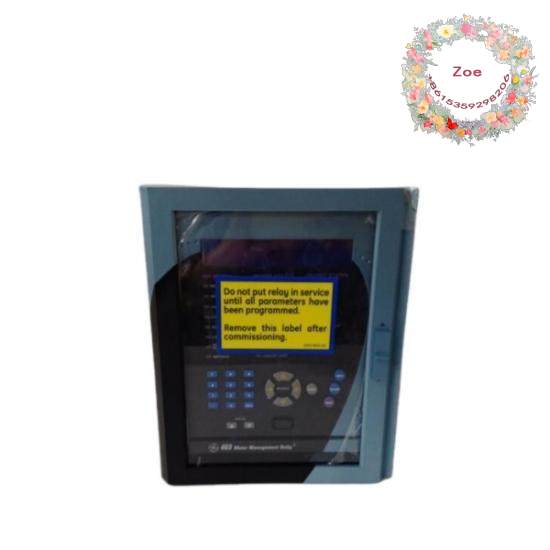

    The GE SR469-P5-HI-A20-E is engineered to offer unparalleled reliability and precision in managing and safeguarding industrial motors. Equipped with multiple RTD inputs, this relay accurately determines the temperature of the motor system, including the hottest point. Its robust design includes harsh environment conformal coating, making it ideal for chemical and other challenging environments. The device operates efficiently within a wide range of voltages and frequencies, providing a versatile solution for diverse industrial applications. With an enhanced front panel and larger LCD display, operators can easily monitor and control the motor system. Additionally, the inclusion of four analog outputs and nine opto-isolated digital inputs ensures seamless integration with existing systems. For installation and maintenance, detailed software support is provided through the EnerVista 469 Setup application. This product is designed to deliver exceptional performance and durability, making it a top choice for industrial motor management.
