Manufacturer:General Electric

Model Number:DS200PTBAG1BBA

Compatibility:Mark V Control System Series

Function:Termination Board with Overspeed Protection and Flame Detection

Connector Type:3 x 10-pin Connectors (JJR, JJT, JJS)

Terminal Blocks:2 Terminal Blocks with Terminals for 72 Signal Wires Each

Signal Wire Capacity:72 per Block

Additional Terminals:6 Signal Wire Terminal Posts

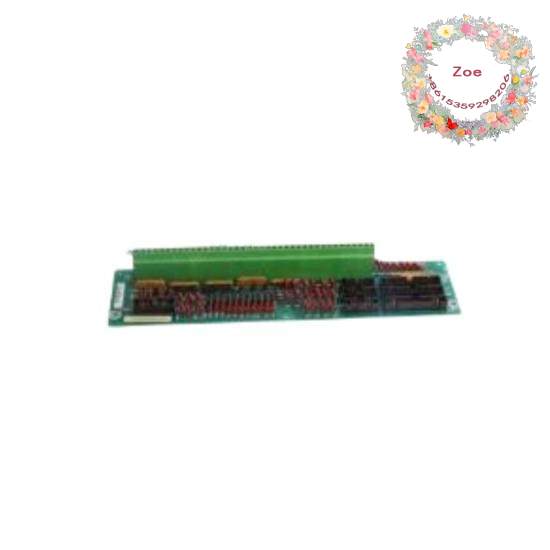

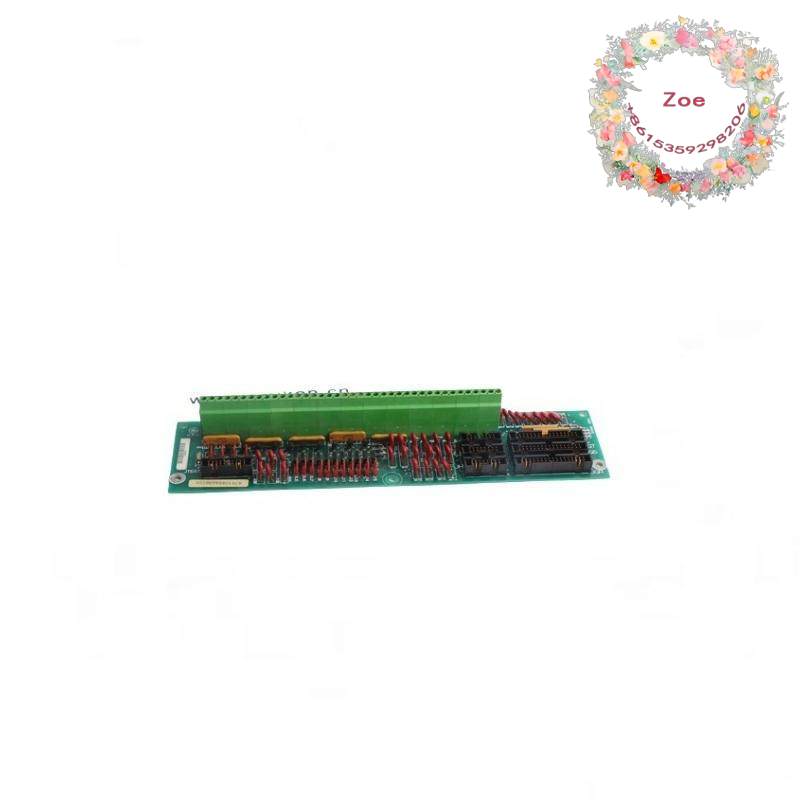

    The DS200PTBAG1BBA Protection Termination Module is meticulously crafted to serve as a vital component in GE’s Mark V Control System series. Designed with robust engineering principles, it ensures reliable performance under demanding conditions.

    This module is equipped with two terminal blocks, each supporting up to 72 signal wires, allowing for extensive connectivity and signal management. Additionally, it includes three 10-pin connectors, identified by their unique IDs (JJR, JJT, JJS), further enhancing its versatility.

    The DS200PTBAG1BBA features terminal posts for six signal wires, providing additional flexibility in wiring configurations. Its ESD-protected design safeguards against damage during transit, ensuring that it arrives at your facility in optimal condition.

    With its primary function as a termination board, the DS200PTBAG1BBA offers essential overspeed protection and flame detection capabilities. This ensures the safety and efficiency of wind turbine operations, making it an indispensable part of the Mark V Control System series.

    Installation and maintenance of the DS200PTBAG1BBA are straightforward, thanks to comprehensive documentation provided by General Electric. Follow the guidelines outlined in the manuals and user guides for seamless integration into your existing system.
