Model Number:10096227G5

Type:TU Trip Unit

Application:Industrial Electrical Systems

Protection Levels:Overload, Short Circuit

Operating Voltage Range:Up to 690V AC

Current Rating:600A

Protection Sensitivity:Adjustable

Relay Outputs:3 Normally Open, 3 Normally Closed

Connection Type:Terminal Block

Certifications:UL, CE

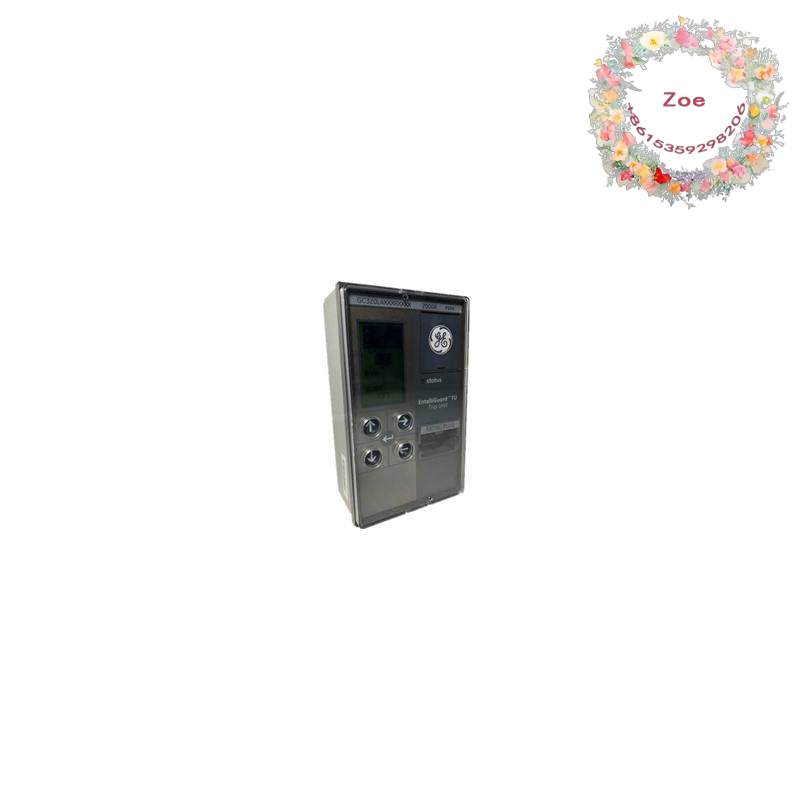

    Introducing the GE 10096227G5 TU Trip Unit, a robust and versatile component engineered to deliver unparalleled reliability in industrial power management systems. This universal trip unit is designed with advanced technology to offer comprehensive circuit protection against overloads and short circuits, safeguarding your electrical systems from potential damage.

    With an operating range from 600 to 6000A, the GE 10096227G5 is suitable for a wide variety of applications, making it an ideal choice for both new installations and system upgrades. Its Class I protection class ensures safety and compliance with industry standards.

    Featuring a 480V AC voltage rating, this trip unit can handle high power loads, providing efficient energy distribution across different sectors including manufacturing, construction, and utilities. The adjustable amperage capacity from 200 to 2000A allows for customization to meet specific project requirements.

    The fast-acting trip characteristics of the GE 10096227G5 are particularly advantageous, as they swiftly respond to fault conditions, minimizing downtime and protecting equipment integrity. Its temperature tolerance from -40°C to +70°C ensures reliability in various environmental conditions, making it suitable for use in extreme climates.

    For ease of installation and maintenance, the panel-mounted design of the GE 10096227G5 TU Trip Unit facilitates quick setup and access, allowing technicians to perform routine checks and adjustments without the need for extensive disassembly. This not only saves time but also reduces the risk of equipment damage during maintenance operations.
