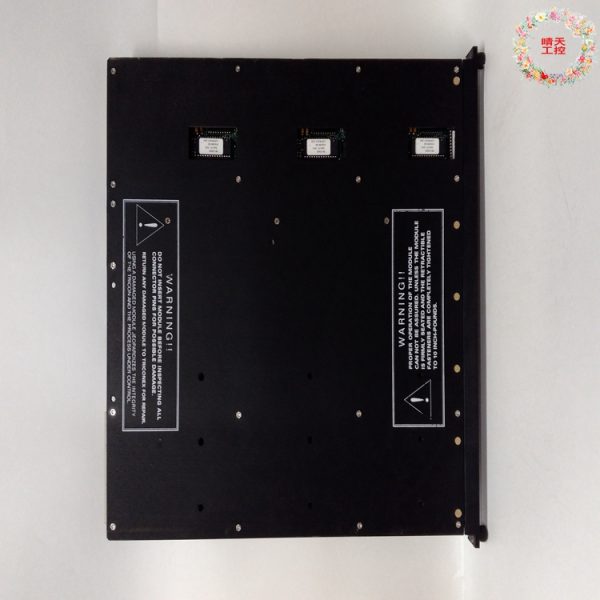

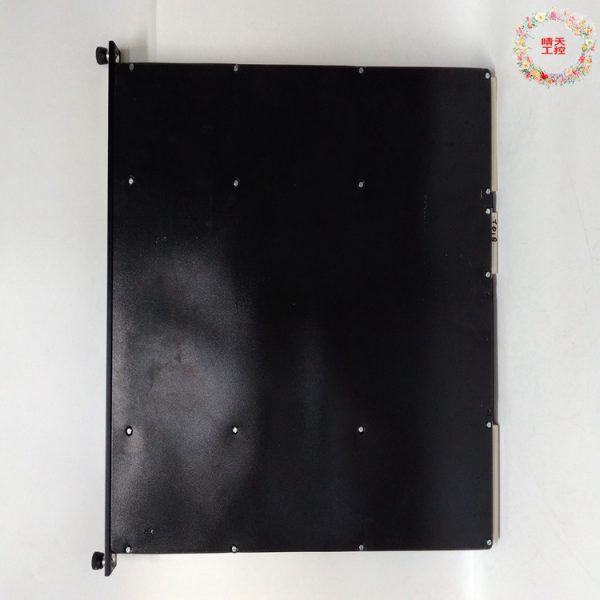

Control system accessories ESD input/Output card 3703E

Brand TRICONEX color standard application Industrial height 255mm rated current 560mA
Protection level IP45 Suitable for motor power 36KW Application Site Power Industry Material Code GJR2391500R1220 Power industry HIEE401782R0001 Part No. 3703E
Applicable pipe 2 Whether imported is weighing 6.18 kg can be sold nationwide

Control system accessories ESD input/Output card 3703E

Product Number :3703E

Product Type: Isolated analog input

Voltage :0-5V or 0-10V1, +6%

Isolated point: Yes

Input update rate :50 room seconds

Resolution :12 bits

Accuracy :% 3C. 15% of the FSR, from 0 to 60 degrees Celsius

Input resistance (load): min. 30 megohm (DC).

Power off resistance: minimum 30 megohm (DC).

Common mode rejection :-90 dB@60Hz, minimum value. -100 dB @ DC, minimum.

Common model :+200V peak

Pin to pin isolation :20kw, typical

Normal mode suppression: 8Hz-3dB@60Hz-17dB@120Hz-23dB

Input overrange :150 volts DC /115 volts AC
