Product Type:Axis Controller Module

Counter Resolution:24-bit

Inputs:HEDL (HP/AVAGO interface) / RS422

Encoder Power Supply:+5 V or +15 V Selectable by Jumper

Output Voltage:Low: 0 to 2 V, High: 3 to 34 V, I_max = 10 mA

Voltage Range:18 to 34 VDC

Stepper Motor Control:2x Outputs at 150kHz

Encoder Compatibility:INC Interface at 1 MHz

DI Inputs:8 x 24V

Acceleration Modes:Linear, Sine², Parabolic

Power Amplifier:Not Included

Encoder Supply Voltage:5V or 15V

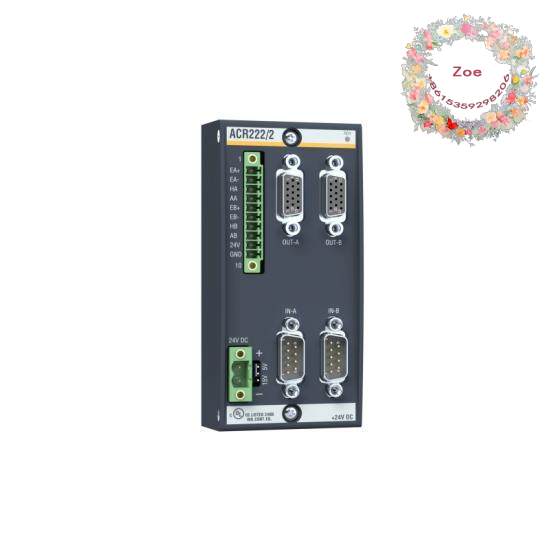

    The BACHMANN ACR222/2 is a high-performance axis controller module engineered for the most demanding industrial automation applications. It seamlessly integrates with various motion control systems, ensuring unparalleled reliability and efficiency.

    Equipped with a 24-bit counter resolution, this module offers exceptional precision for accurate positioning and timing in critical operations. The dual input configurations (HEDL/RS422) provide flexibility in connecting with diverse encoder systems, enhancing compatibility across different machinery.

    Featuring versatile power supply options (+5 V or +15 V), the ACR222/2 supports a wide range of encoders, enabling its use in environments with varying power requirements. The adjustable output voltage ensures smooth operation across different mechanical systems, while the current limit of 10 mA prevents overloading and protects connected components.

    With a robust voltage range of 18 to 34 VDC, this module is designed to withstand harsh industrial conditions, ensuring continuous operation even in challenging environments. Its compact size and modular design facilitate easy installation and integration within existing control systems, minimizing downtime and facilitating quick setup.

    Optimized for use in applications requiring high-speed response and precision control, the BACHMANN ACR222/2 delivers superior performance, making it an ideal choice for manufacturers seeking to enhance the accuracy, speed, and reliability of their automated processes. This module is a testament to BACHMANN’s commitment to innovation and excellence in industrial automation technology.
