Model Type:MicroLogix™

Interface:(1) RS-232/RS-485, (1) Ethernet/IP

Power Supply:24 VDC

Mounting:DIN Rail, Panel

Input:12 Fast 24 VDC, 8 Normal 24 VDC

Output:6 Relay, 3 Fast DC, 3 Normal DC

Length:180 MM

Width:90 MM

Height:87 MM

Temperature Rating:-20 To 60 DEG C

Environmental Conditions:Relative Humidity: 5 – 95% Noncondensing, Vibration: 3 G At 10 – 500 HZ, Shock Operating: 30 G, Shock Non-operating: Panel Mount 50 GDIN Mount 40 G

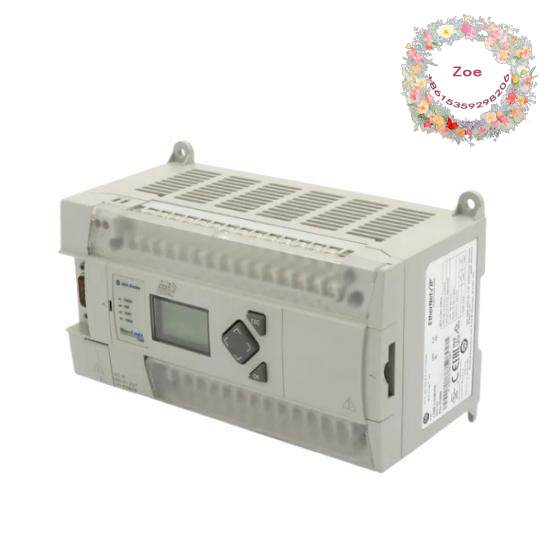

    Engineered for robust performance in challenging industrial conditions, the Allen Bradley 1766-L32BXB/A MicroLogix Programmable Controller boasts a compact design that facilitates easy integration into existing systems. Its versatile interface options, including RS-232/RS-485 serial, and Ethernet/IP for network connectivity, ensure seamless communication with a wide range of devices and systems.

    Featuring a comprehensive set of 20 digital input/output channels, this controller supports both fast and standard operation modes, making it suitable for applications requiring high-speed response or precise control over processes. The inclusion of 6 relay outputs and 3 fast DC outputs allows for direct control of motors, solenoids, and other electromechanical devices.

    With its support for programming languages such as RSLogix 5000 or Studio 5000 Logix Designer, users can leverage advanced programming capabilities to customize control logic, optimize system performance, and enhance overall efficiency. The modular design ensures scalability, allowing for easy expansion and modification to meet evolving needs.

    Designed with reliability at its core, the Allen Bradley 1766-L32BXB/A withstands harsh environmental conditions, including temperature fluctuations and vibration, ensuring continuous operation in diverse industrial settings. Its compact form factor and compatibility with DIN rail and panel mounting options make it a flexible choice for space-constrained installations.

    Backed by Allen Bradley’s reputation for quality and innovation, the 1766-L32BXB/A is a trusted solution for process automation and control, delivering precision, efficiency, and reliability in manufacturing operations worldwide. Whether in automotive assembly lines, food processing facilities, or chemical plants, this programmable controller empowers industries to achieve higher productivity and maintain competitive advantage.
