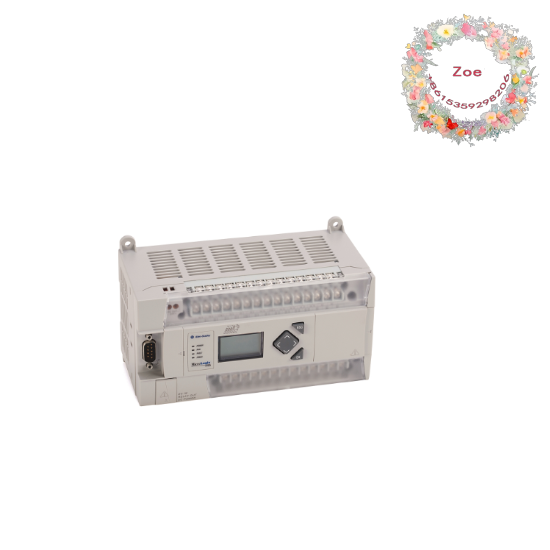

Model Type:MicroLogix 1400 Controllers

Model Number:1766-L32AWA

Manufacturer:Allen Bradley

Inputs:20 Digital 120V AC Inputs

Relay Outputs:12 Relay Outputs

Power Supply:24 VDC

Interface:(1) RS-232/RS-485, (1) Ethernet/IP

Mounting:DIN Rail, Panel

Input Capacity:12 Fast 24 VDC, 8 Normal 24 VDC

Output Capacity:6 Relay, 3 Fast DC, 3 Normal DC

Dimensions:Length: 180 MM, Width: 90 MM, Height: 87 MM

Temperature Range:-20 To 60 DEG C

Environmental Conditions:Relative Humidity: 5 – 95% Noncondensing, Vibration: 3 G At 10 – 500 HZ, Shock Operating: 30 G, Shock Non-operating: Panel Mount 50 GDIN Mount 40 G

    The Allen-Bradley MicroLogix 1400 1766-L32AWA stands out for its combination of advanced features and user-friendly design, making it a preferred choice for industrial automation projects. This PLC boasts high-speed processing capabilities, allowing for rapid response times in critical control scenarios.

    With 12 fast 24V DC inputs, the device can quickly process signals from various sensors and actuators, ensuring real-time monitoring and control of industrial processes. The inclusion of 6 relay outputs provides a reliable switching solution for motor control and other high-power applications.

    Equipped with 4 analog inputs (12 bits), the MicroLogix 1400 can accurately measure and control variables such as temperature, pressure, and flow rates, enabling precise adjustments in complex systems.

    The 2 analog outputs offer the flexibility to drive sensitive devices or perform sophisticated control functions, enhancing the system’s adaptability and efficiency.

    Featuring an intuitive interface and comprehensive support for various programming languages, this PLC simplifies the development and maintenance of control programs, making it accessible to a broad range of users from technicians to engineers.
