Input Type:Digital Input

Number of Inputs:16

Voltage Category:24V DC source

Operating Voltage Range:20.4…26.4V DC

Current per Point:0.5 A @ 60 °C (140 °F), 1.0 A @ 30 °C (86 °F)

Power:24 Volts DC

Bus Current Draw, Max:200 mA

Mounting:DIN rail or panel mount

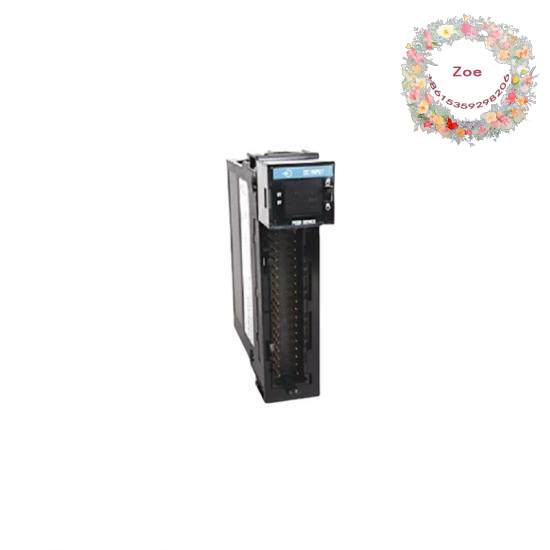

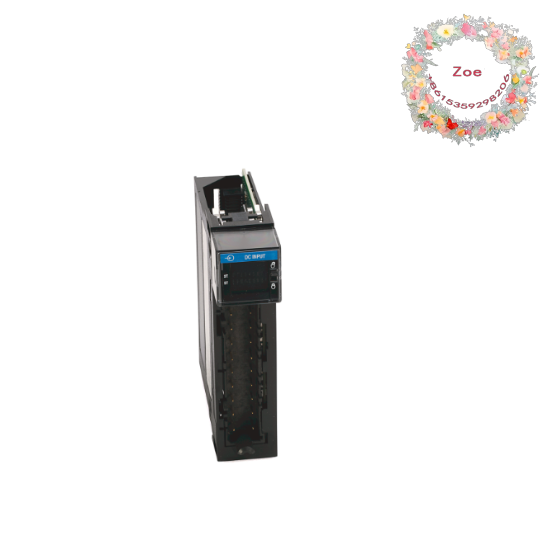

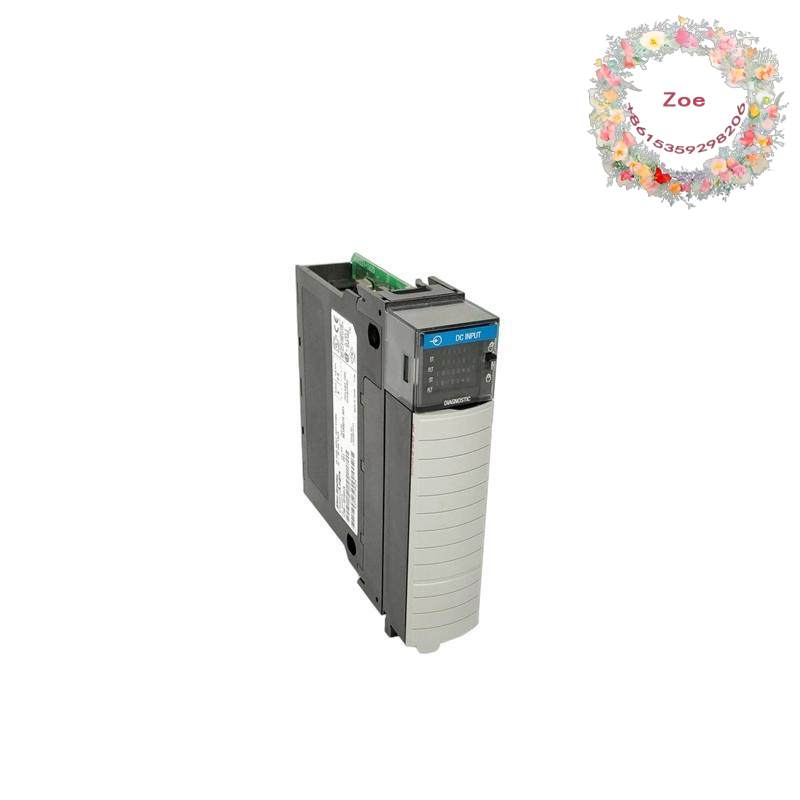

    The AB 1756-IB16 is a reliable and efficient digital input module specifically engineered for industrial environments. With its sixteen channels, it can monitor a wide range of discrete signals, ensuring real-time data acquisition and enhanced system performance. Designed for seamless integration with Allen-Bradley PLC systems, this module supports a voltage category of 24V DC, making it compatible with a variety of industrial applications.

    Its robust design includes a wide operating voltage range of 20.4…26.4V DC, ensuring stable operation even under fluctuating conditions. Each input channel can handle up to 0.5 A at 60°C or 1.0 A at 30°C, providing ample capacity for diverse signal requirements. Additionally, the module draws a maximum bus current of 200 mA, contributing to energy efficiency and reducing operational costs.

    Installation is straightforward, thanks to its versatile mounting options. Users can choose between DIN rail or panel mounting, allowing for flexible placement based on specific needs. Whether used in manufacturing plants, process control systems, or other industrial settings, the AB 1756-IB16 offers reliable and accurate monitoring capabilities, enhancing overall system reliability and productivity.
