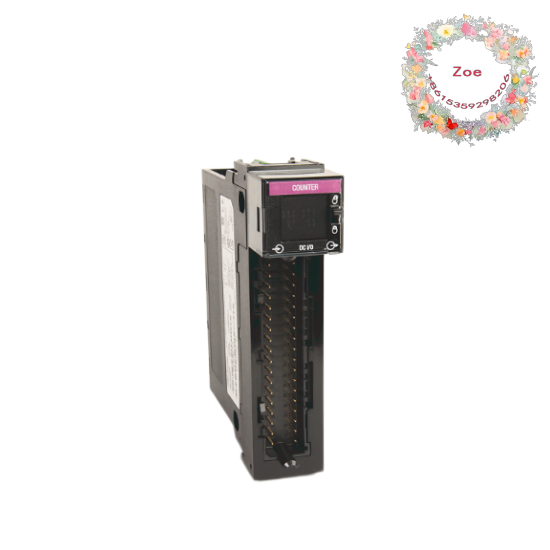

Manufacturer:Allen Bradley

Model Number:1756-HSC

Type:High Speed Counter Module

Communication:ControlLogix Communication Module

Power Supply:3 MA at 24 VDC

Mounting:Chassis

Communication Speed:10/100 MBPS

Communication Protocol:Ethernet/IP Bridge

Enclosure:Open Type

Connection:Compliant Shielded or Unshielded Twisted Pair Cables

Temperature Rating:0 – 60 DEG C

Power Dissipation:5.1 W

Isolation:30 V Continuous

Environmental Conditions:5 – 95% Non-Condensing Relative Humidity

Vibration Resistance:2 G

Shock Resistance:30 G

Interface:Ethernet

USB Port:Not Available

    Crafted for precision and reliability, the Allen Bradley 1756-HSC is a high-speed counter module that excels in monitoring and controlling high-frequency events in industrial automation.

    Engineered with a robust communication interface compatible with ControlLogix systems, this module ensures seamless integration into complex production lines, enhancing operational efficiency.

    Featuring a 3 MA power supply at 24 VDC, the 1756-HSC provides stable operation under a wide range of industrial conditions, ensuring uninterrupted performance even in challenging environments.

    With support for both 10/100 MBPS Ethernet speeds and Ethernet/IP Bridge protocol, the module offers versatile connectivity options, facilitating smooth data exchange and network integration.

    Equipped with an open-type enclosure, this counter module maintains optimal performance while being adaptable to diverse installation scenarios, making it suitable for a broad spectrum of industrial applications.
