Model Type:High Capacity IP Module

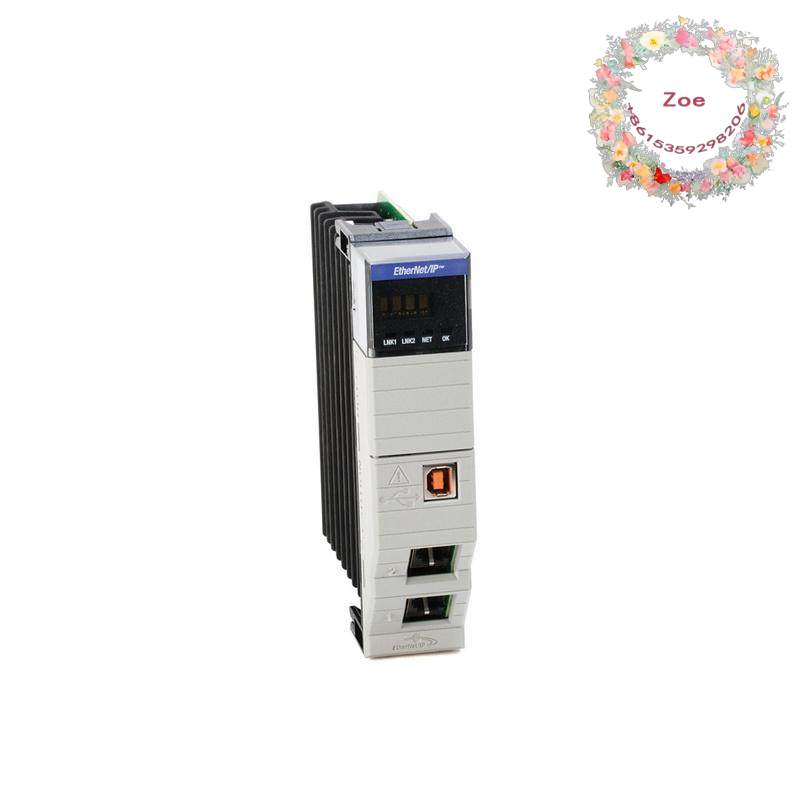

Model Number:1756-EN2TRK

Manufacturer:Allen-Bradley

Communication Module:ControlLogix EtherNet/IP Bridge

Power Supply:3 MA at 24 VDC

Mounting:Chassis

Communication Speed:10/100 MBPS

Communication Protocol:Ethernet/IP

Enclosure:Open Type

Connection Cables:802.3 compliant shielded or unshielded twisted pair

Temperature Rating:0 – 60 DEG C

Power Dissipation:5.1 W

Isolation:30 V continuous

Environmental Conditions:5 – 95% non-condensing relative humidity

Vibration Resistance:2 G

Shock Resistance:30 G

Interface:Ethernet

USB Port:Not applicable

    The Allen-Bradley 1756-EN2TRK is a state-of-the-art dual EtherNet/IP bridge module designed to enhance the operational efficiency of industrial automation systems. This high-capacity module is engineered for compatibility with Allen-Bradley ControlLogix platforms, ensuring robust and reliable data transmission across networks.

    Featuring advanced Ethernet/IP communication capabilities, this module seamlessly integrates with a wide range of network devices, facilitating streamlined data exchange essential for modern industrial environments. With its open-type enclosure, the 1756-EN2TRK is optimized for diverse operational conditions, ensuring continuous performance under varying environmental challenges.

    Equipped with a temperature rating from 0 to 60 DEG C and capable of handling up to 30 G of shock, this module is built to withstand harsh industrial settings. Its 5.1 W power dissipation ensures minimal heat generation, maintaining optimal operational conditions for extended periods.

    The inclusion of an open-type enclosure allows for easy installation and maintenance, while the 30 V continuous isolation protects against electrical hazards, ensuring the safety and longevity of the system. Furthermore, its compatibility with 5-95% non-condensing relative humidity environments ensures adaptability across various industrial locations.

    With its support for both shielded and unshielded twisted pair cables, the Allen-Bradley 1756-EN2TRK provides flexibility in cabling options, making it a versatile choice for different network configurations. This dual EtherNet/IP bridge module is an indispensable component for optimizing industrial automation processes, enhancing system reliability, and boosting overall productivity.
