Number of I/O Terminals:32

Common Terminals:8

+Voltage Terminals:8

Mounting Style:DIN

Environmental Protection Class:IP20

Connector Type:Screw-Clamp

Connection Style:Open

Compatibility:Flex I/O Systems

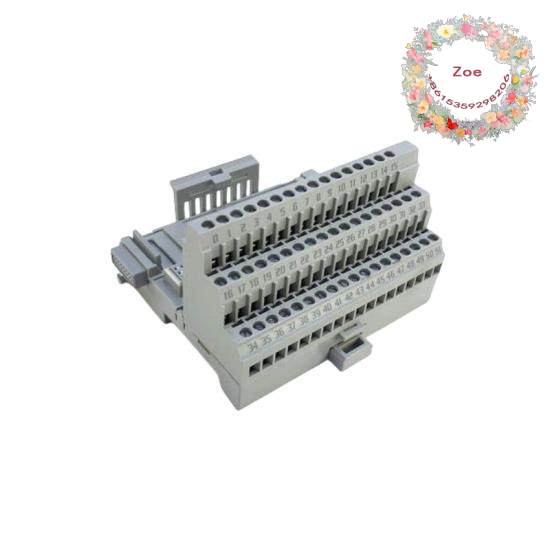

    The Allen Bradley 1794-TB32S is a robust and versatile terminal base designed specifically for enhancing the functionality of industrial PLC systems. It supports up to 32 input/output terminals, making it suitable for large-scale automation projects. The inclusion of 8 common terminals and 8 + voltage terminals allows for flexible configuration, catering to various application requirements.

    This terminal base features a screw-clamp connection method, ensuring secure and reliable connections between components. Its open style design facilitates easy access for maintenance and upgrades, while the DIN mount ensures compatibility with standard industrial enclosures.

    With an IP20 protection rating, the 1794-TB32S is protected against dust and splashes of water, making it suitable for a wide range of industrial environments. The supply voltage range of 31.2V DC/AC, along with a continuous voltage rating of 24V DC/AC, guarantees reliable operation under various power conditions.

    Allen Bradley’s commitment to quality is evident in the 1794-TB32S’s construction. The terminal screw torque of 0.56-0.79 Nm ensures tight and consistent connections, which are crucial for maintaining the integrity of the electrical circuits in demanding industrial settings.

    Designed for seamless integration into existing Allen Bradley or Rockwell Automation PLC systems, the 1794-TB32S enhances system performance by offering improved signal transmission and control precision. Whether you’re upgrading an existing installation or starting a new project, this terminal base provides a reliable foundation for your automation needs.
