Number of Channels:16 (2 Groups of 8)

Input Voltage Range:10 – 30 VDC

Input Current:On-State Current: 0.5 A

Output Voltage Rating:24 VDC

Output Current Rating:Module: 4 A, Surge: 1 A

Isolation Rating:500 VAC

Enclosure Type:IP20, Open Type

Communication Interface:DeviceNet

Mounting Option:DIN Rail, Panel

Dimensions (Length x Width x Height):1.9 IN x 1.5 IN x 4.4 IN

Temperature Range:0 – 60 DEG C

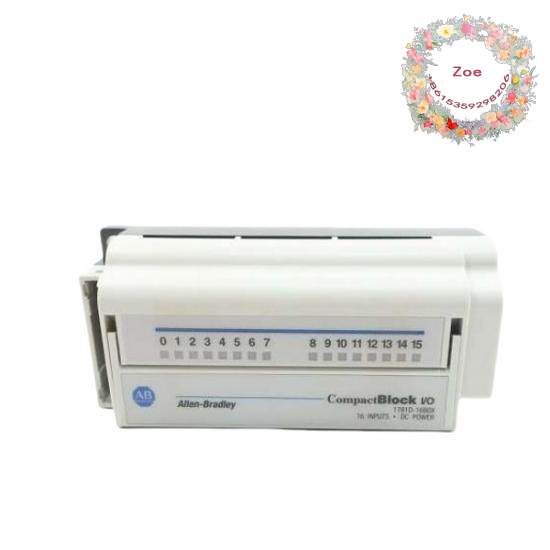

    The Allen-Bradley 1791-D16B0X CompactBlock I/O DeviceNet Module is engineered for seamless integration into industrial automation systems, ensuring reliable and efficient performance in diverse manufacturing environments.

    Featuring a compact design, this module optimizes space and facilitates easy installation on DIN rail or panel, making it ideal for modern, space-conscious factories.

    With its robust isolation and high voltage rating, the module ensures safe operation and reliable data transmission, even under challenging industrial conditions.

    The 1791-D16B0X supports DeviceNet protocol, enabling seamless communication with other DeviceNet devices, which is crucial for building scalable and interconnected automation networks.

    This output expansion module is part of the Allen-Bradley CompactLogix family, known for its advanced control capabilities, ease of programming, and compatibility with a wide range of Allen-Bradley products, enhancing system flexibility and productivity.
