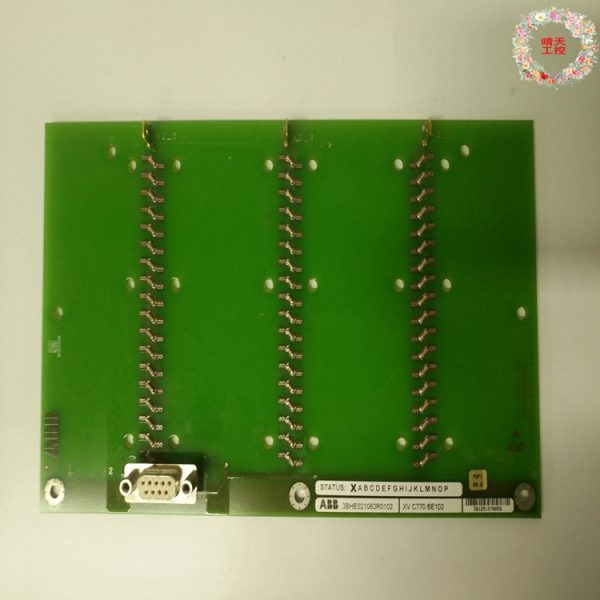

ABB XVC770BE101 3BHE021083R0101 Conversion reset release flag
Brand ABB color Standard Application Industrial height 268mm rated current 150mA
Protection Level IP45 Suitable for motor power 149KW Applicable Site Power Industry Material Code GJR2391500R1220 Power industry HIEE401782R0001 Part Number XVC770BE101 3BHE021083R0101
Applicable pipe 2 Whether imported is weighing 3.68 kg can be sold nationwide
ABB XVC770BE101 3BHE021083R0101 Conversion reset release flag
A control sequence can and usually should be run before the system starts. Execute the sequence by setting the parameter 09.03 to 1. If it is set to 0, it will not be executed.
ABB XVC770BE101 3BHE021083R0101 The sequence is as follows:
1) The driver presses “Start”. If all other boot conditions are met, the Start command appears
DI 7 to DATX 111 board and -X104:4 (start pulse) to DARU 100
Connected by parallel wires. The “Start” button must be held down throughout the test
The value is less than 100ms.
2) The “Start” button 0→1 converts the reset release sign. The relay unit is not released
DARU 100 is possible.
3) The NC auxiliary contact of the lock release mark and the solenoid valve contactor
The emergency brake valve closes the DO 4. The NC contact is connected to
DI 3.
4) DO 4 Pull the relay. The relay has one normally closed contact and one normally open contact. Relay must
Classification is used for simultaneous operation of two contacts.
5) The NC of the relay will open the contactor of the emergency solenoid valve
However, in this case, the contactor has been powered off. If contactor
If it is already welded, the test in Step 3 has failed.
6) The NO of the relay is connected to DI 5. When DI 5 becomes 0 →1 If the driver still presses the “Start” button, the release flag enabled in step 2 is unlocked.
DO 4 Restart
7) If the test passes, DARU 100 will run, if it fails, a fault code 75 is given.
Hardware is monitored, such failures will result in a safe stop (SO1), and
The system can still be partially controlled by an early direct undelayed stop with emergency braking
(DO4). Report fault codes 71, 72, or 75 to ABB before restarting the monitoring system.
ABB XVC770BE101 3BHE021083R0101 Conversion reset release flag
