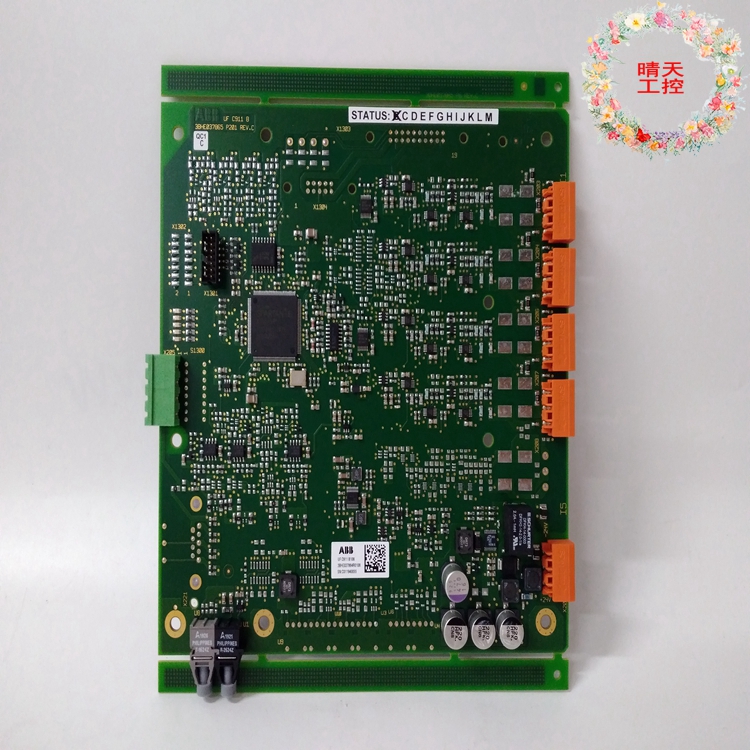

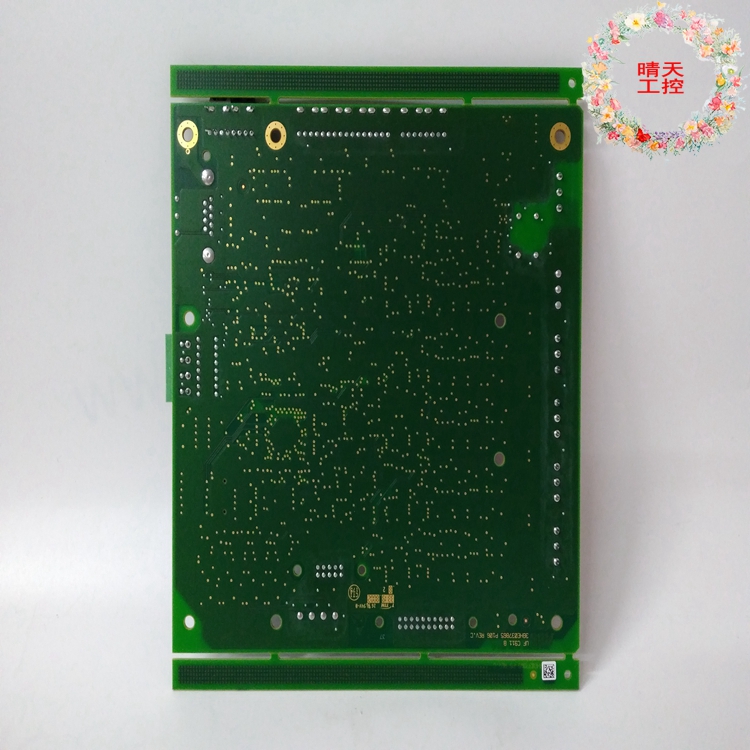

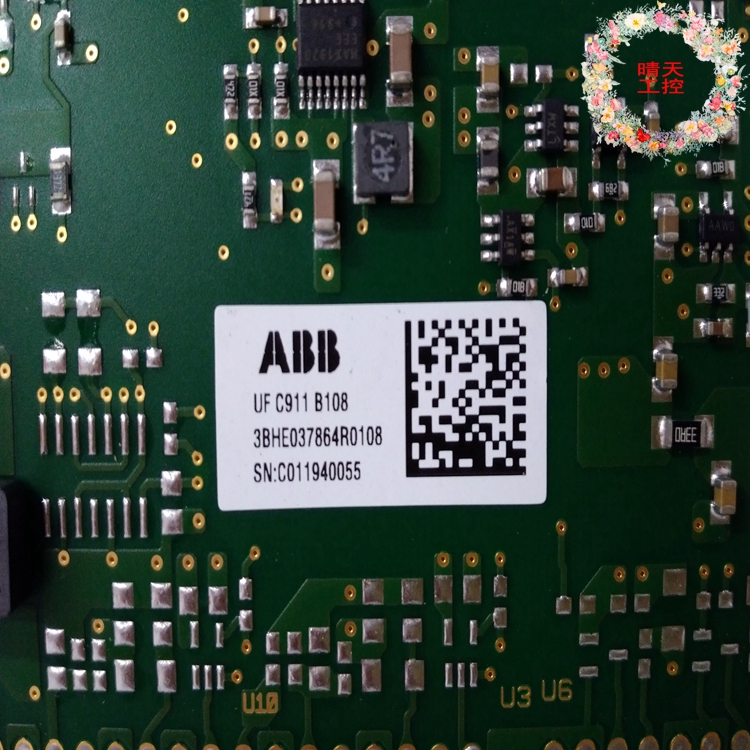

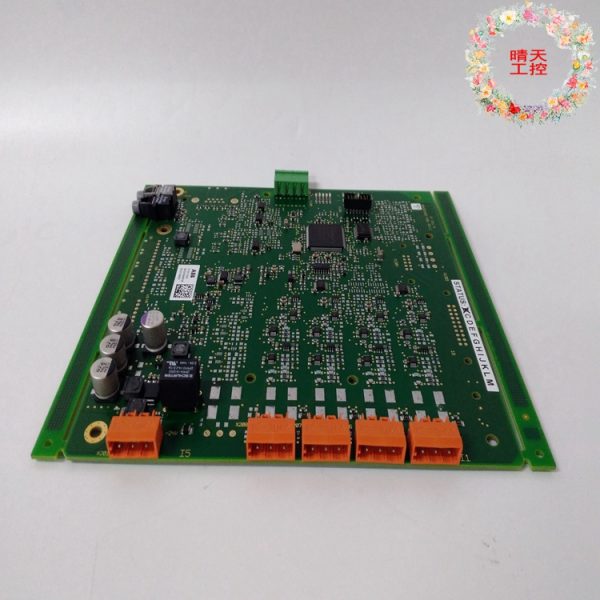

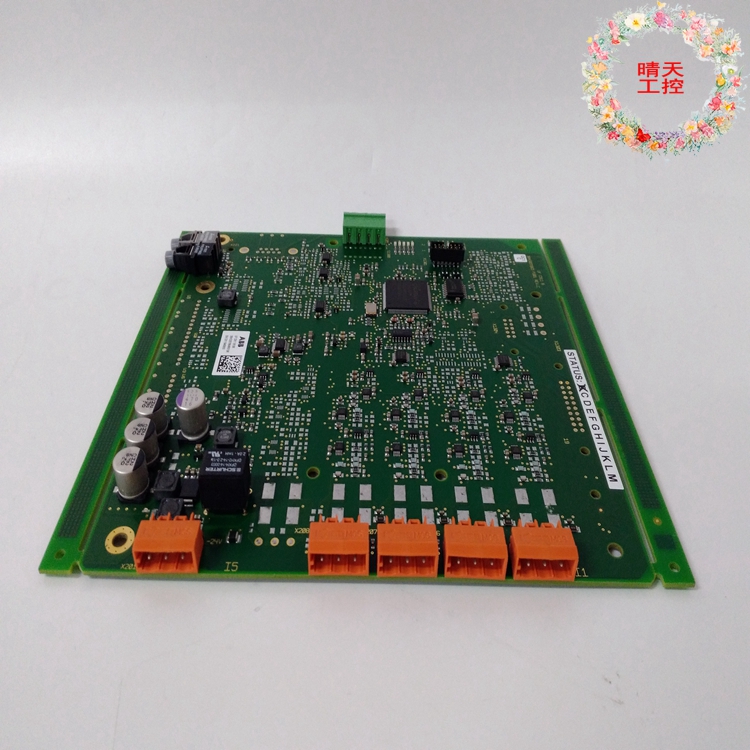

ABB UFC911B108 Programmable control module
Brand ABB color standard Application Industrial height 228mm rated current 228mA
Protection Level IP45 Suitable for motor power 225KW Application Site Power Industry BOM Number GJR2391500R1220 Power industry HIEE401782R0001 Part Number UFC911B108
Applicable pipe 2 Whether imported is weighing 1.68 kg can be sold nationwide
ABB UFC911B108 Programmable control module
The ABB UFC911B108 is an AO processing module that can be used in automation equipment. The module receives the analog signal from the sensor and converts it into a digital signal that can be processed by the system. The UFC911B108 has a high-performance processor that allows for fast and accurate signal processing. The UFC911B108 can be used to control speed and motor position, regulate temperature and pressure, and monitor various parameters such as flow and level. The UFC911B108 can also be used to perform mathematical calculations and logical operations on signal data.
The TU845MTU can have up to 8 I/O channels and 2+2 processing voltage connections. Each channel has two L/0 connections and one ZP connection. The input signal is connected via a separate shunt rod TY801. Shunt rods are used to select voltage and current inputs. The maximum rated voltage is 50V and the maximum rated current is 2A.
MTU assigns two Module buses, one for each I/0 module and the other MTU. It also generates the correct I/O module address by transferring the output position signal to the next MTU. It has a mechanical lock that locks the MTU to the DIN rail
Four mechanical keys, two for each I/0 module, are used to configure MTU for different types of I/0 modules. This is a mechanical configuration only and does not affect the functionality of the MTU or 1/0 module. Each key has six locations and a total of 36 different configurations.
Characteristics and advantages
The I/O module is installed using a dual-wire connection and onsite power distribution.
Up to 8 channels of field signal and process power connections
Connect to the two Module By and /o modules
Mechanical keying prevents the insertion of incorrect I/O modules
Latching device for DIN rail for grounding.
