Operating Frequency:Up to 20 kHz

Peak Current:62 Amps

Switching Loss:Less than 20 mW/A

Thermal Resistance:Less than 1.5 °C/W

Insulation Resistance:Over 10 MΩ

Operating Temperature Range:-40°C to +125°C

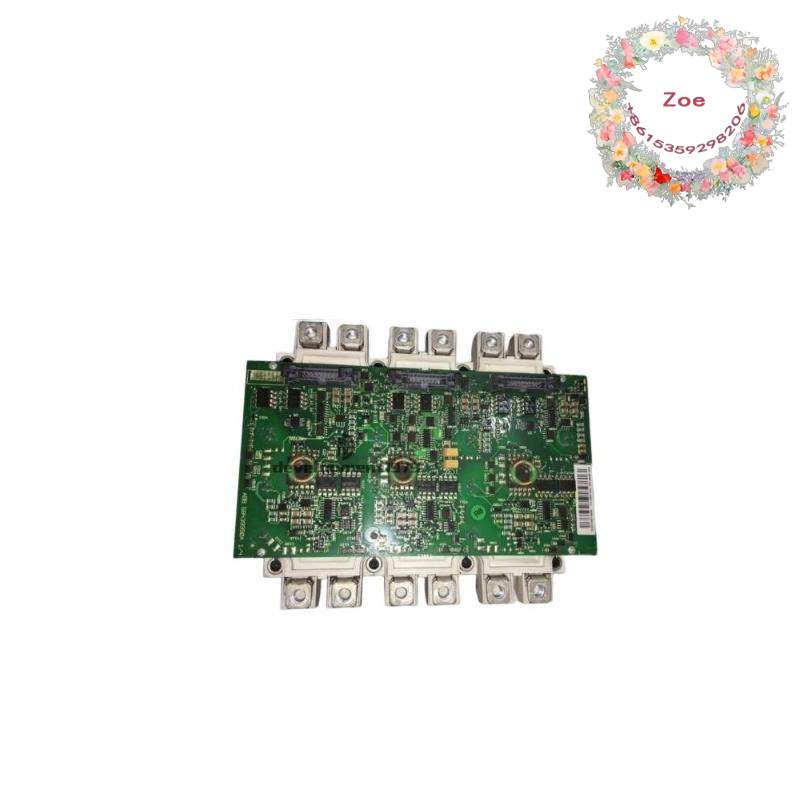

    The ABB FS300R12KE3 & AGDR-62C IGBT MODULE is designed for extreme durability and operational flexibility, providing unparalleled performance in industrial environments. This module is engineered with state-of-the-art semiconductor technology, ensuring seamless integration with ABB’s comprehensive motion control systems for enhanced system performance.

    Featuring a wide operating temperature range (-40°C to +125°C), this IGBT module is suitable for a variety of harsh industrial conditions, ensuring reliable operation across diverse applications. The high-efficiency design minimizes energy loss, contributing to cost-effective and environmentally friendly operations.

    With a DC input voltage capacity of 1200V and capable of handling high output current, this module is ideal for applications requiring precise power control. Its compatibility with ABB’s advanced motion control systems ensures optimal control over motors, drives, and other electrical components, leading to improved process efficiency and reduced maintenance needs.

    Manufactured using high-quality materials and robust construction, the ABB FS300R12KE3 & AGDR-62C IGBT MODULE is built to withstand the rigors of industrial use, delivering consistent performance over its lifecycle. It is designed for easy installation and maintenance, facilitating quick setup and minimal downtime for production lines.

    Incorporating the latest advancements in semiconductor technology, this IGBT module offers superior switching characteristics, enabling faster response times and smoother operation. Its compatibility with a wide range of industrial protocols and standards ensures seamless integration into existing systems, simplifying the transition for users looking to upgrade or expand their infrastructure.
