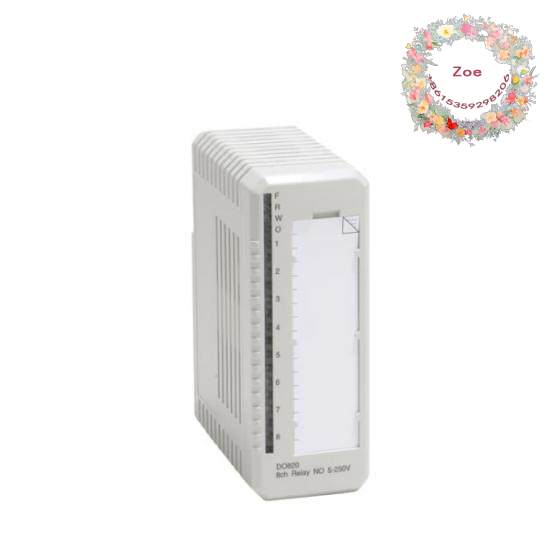

Manufacturer:ABB

Model:3BSE008514R1

Submodel:DO820

Module Type:Digital Output

Communication Interface:Profibus-DP

Number of Channels:8

Channel Configuration:Single

Output Voltage:24V DC

Operating Current per Channel:0.3A max.

Load Rating:16 Channels at 2A each

Response Time:≤ 1ms

Power Consumption:0.3W

Environmental Conditions:Operating Temperature: -25°C to +60°C

Storage Temperature:-40°C to +85°C

Humidity Range:5% to 95% non-condensing

Enclosure Rating:IP20

Weight:0.25kg

Dimensions:125mm x 100mm x 90mm

    The ABB 3BSE008514R1 DO820 Digital Output Module is renowned for its reliability and efficiency in handling demanding industrial automation tasks. With a compact design that seamlessly integrates into existing control systems, this module offers unparalleled performance in managing complex on-off operations.

    Featuring a robust construction, the module is built to withstand harsh industrial environments, ensuring continuous operation even under challenging conditions. Its wide operating temperature range makes it suitable for various manufacturing settings worldwide.

    The module supports multiple communication interfaces, enhancing compatibility with a broad spectrum of control systems and enabling seamless integration with other ABB products or third-party systems. This feature facilitates a more cohesive and efficient automation setup.

    With a high current rating and a large number of outputs, the ABB 3BSE008514R1 DO820 Digital Output Module is ideal for applications that require high-power switching capabilities. Whether you’re managing large-scale machinery or precise control in smaller systems, this module delivers the necessary performance.

    For maintenance and troubleshooting, the ABB 3BSE008514R1 DO820 Digital Output Module comes with comprehensive diagnostic tools and clear documentation, ensuring easy installation and smooth operation throughout its lifecycle. Backed by ABB’s commitment to quality and customer support, this module is an excellent investment for any industrial automation project.
