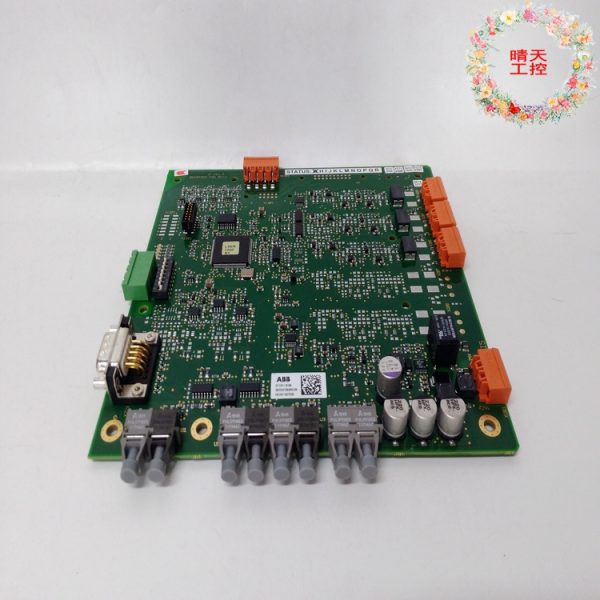

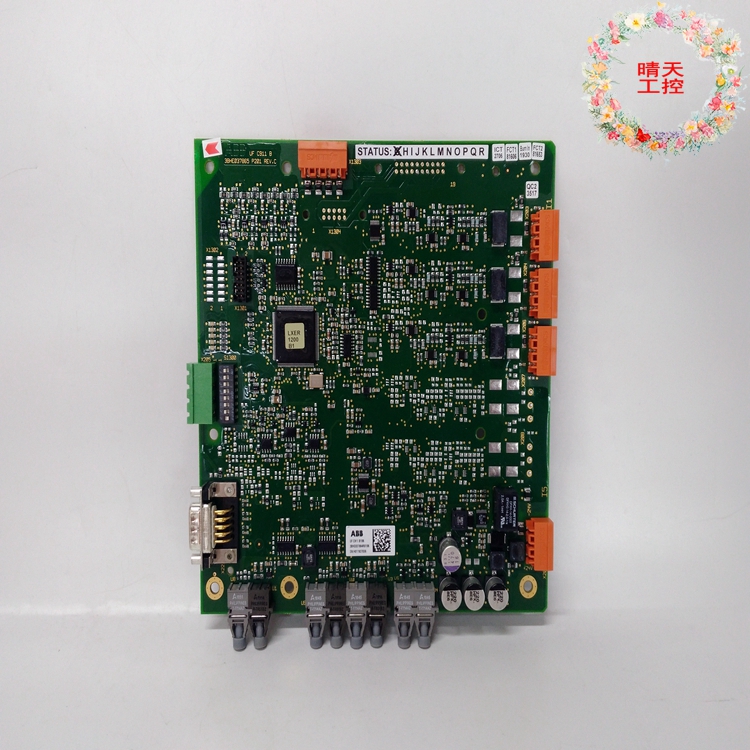

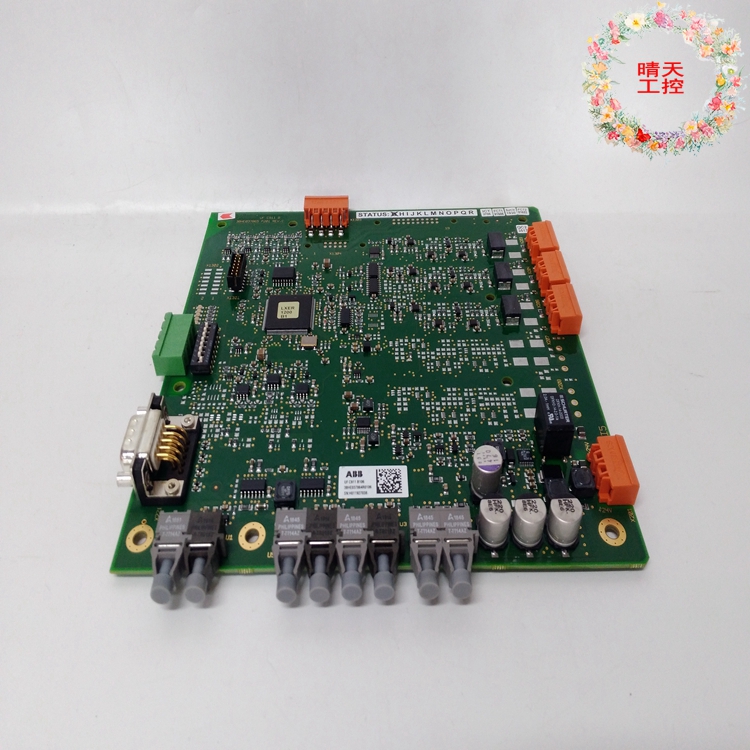

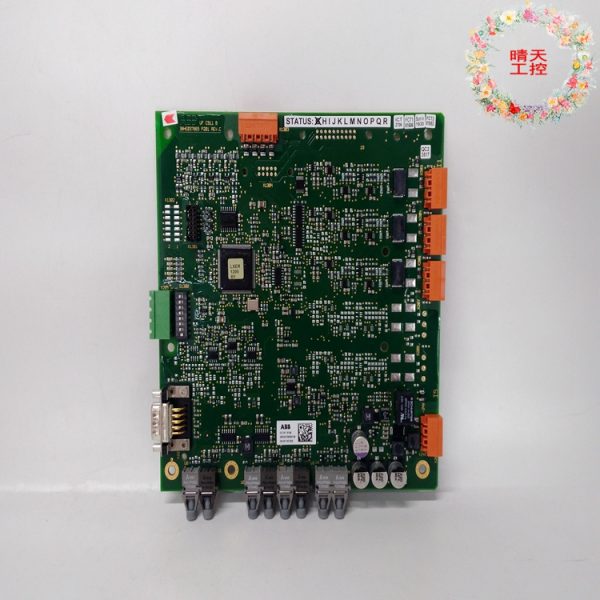

3BHE037864R0106 Bus control module card
3BHE037864R0106 Application: Suitable for driving high-power DC brushless servo motor.
Position sensor: Incremental encoder.
Power supply voltage: 18VDC to 160VDC.

Current parameter: Maximum continuous current up to 50A.
Control mode: Position control mode, speed control mode and current (torque) control mode.
Operation mode: including network command mode, pulse/direction mode, +/-10V analog signal mode and independent operation mode.
Communication interface: Support RS232, RS485 and CAN bus communication.
3BHE037864R0106 Software support: Drive parameter adjustment, online monitoring and real-time control can be performed through MotionStudio software.
Integrated function: Integrated PLC function, including 8 photoelectric isolation digital input, 3 photoelectric isolation digital output, 1 +/-10V analog input.
Protection mechanism: With temperature protection, over current, over voltage, under voltage protection, I2t current limit and other functions, high reliability.

3BHE037864R0106 Other features: Built-in electronic gear function.
Current loop control frequency 16kHz.
Position/speed loop control frequency 4kHz.
Provides host computer dynamic library MotionLib and instruction set description for host computer application programming.
